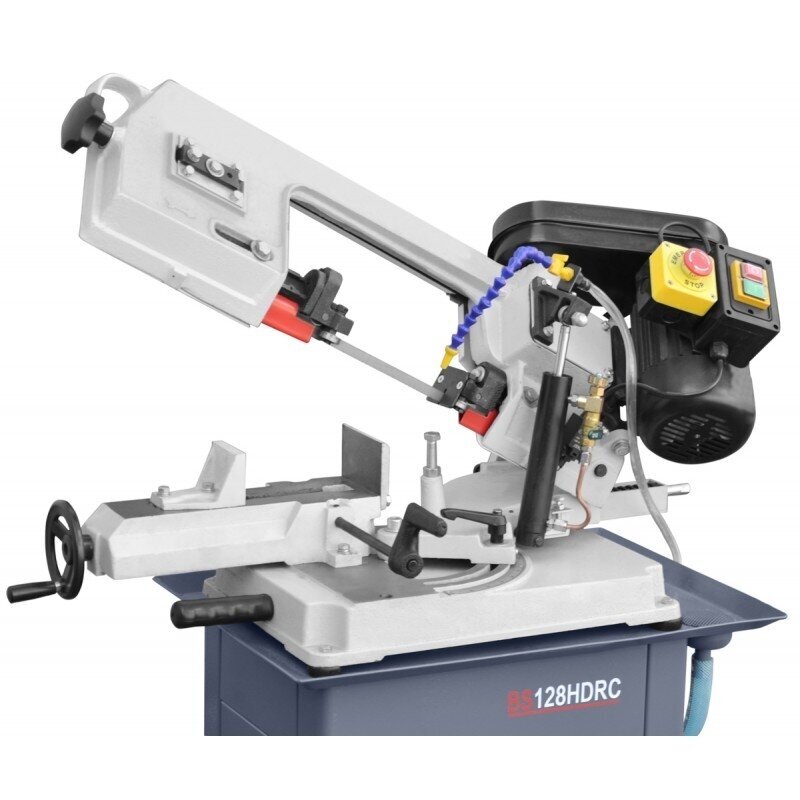

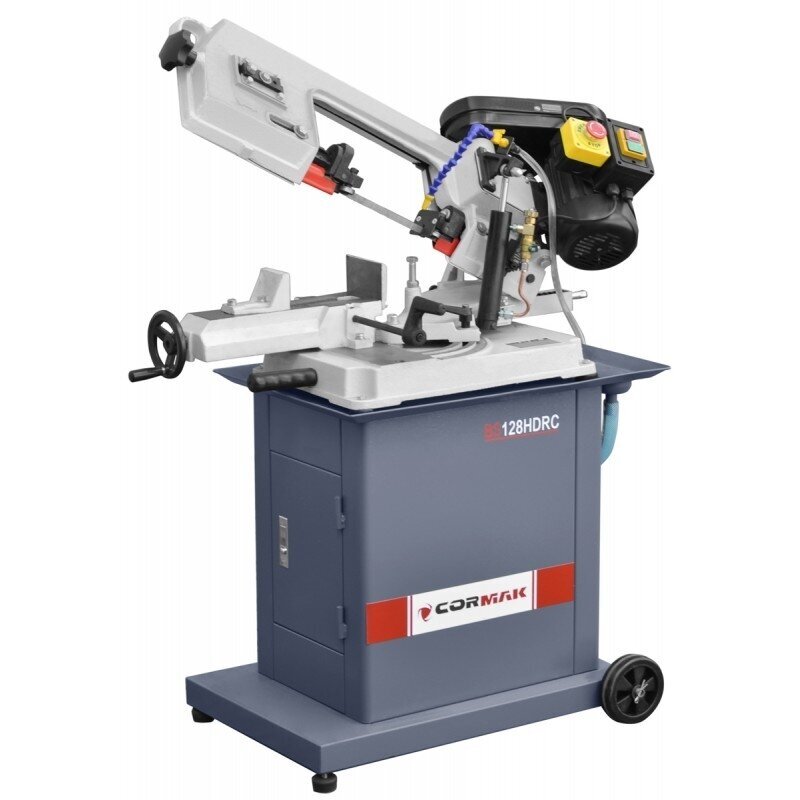

Cormak BS 128 HDRC 230V Band Saw
-
Cormak BS 128 HDRC 230V Band Saw
-
Most important advantages:

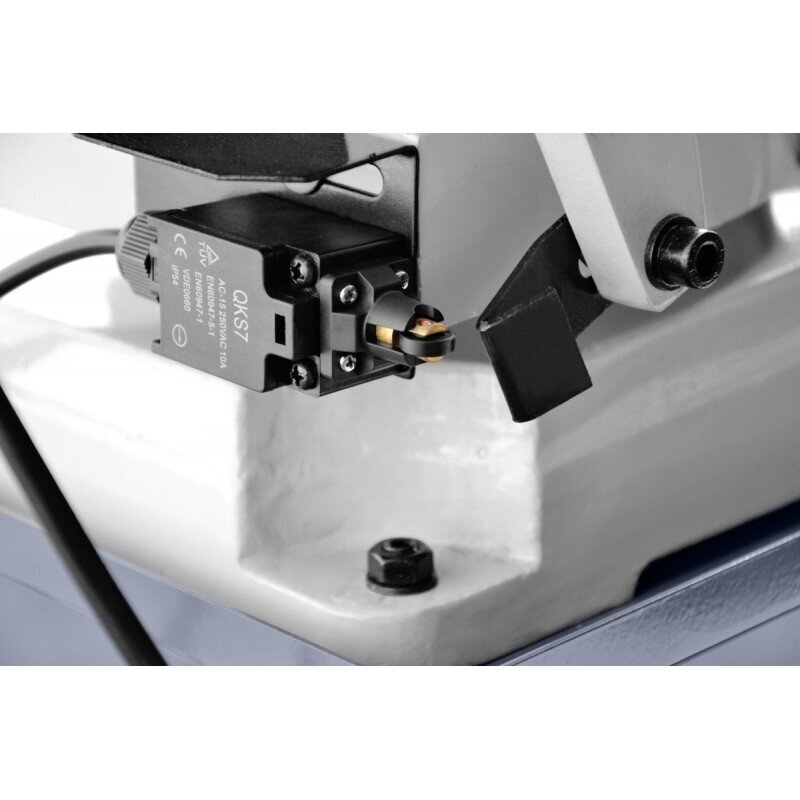

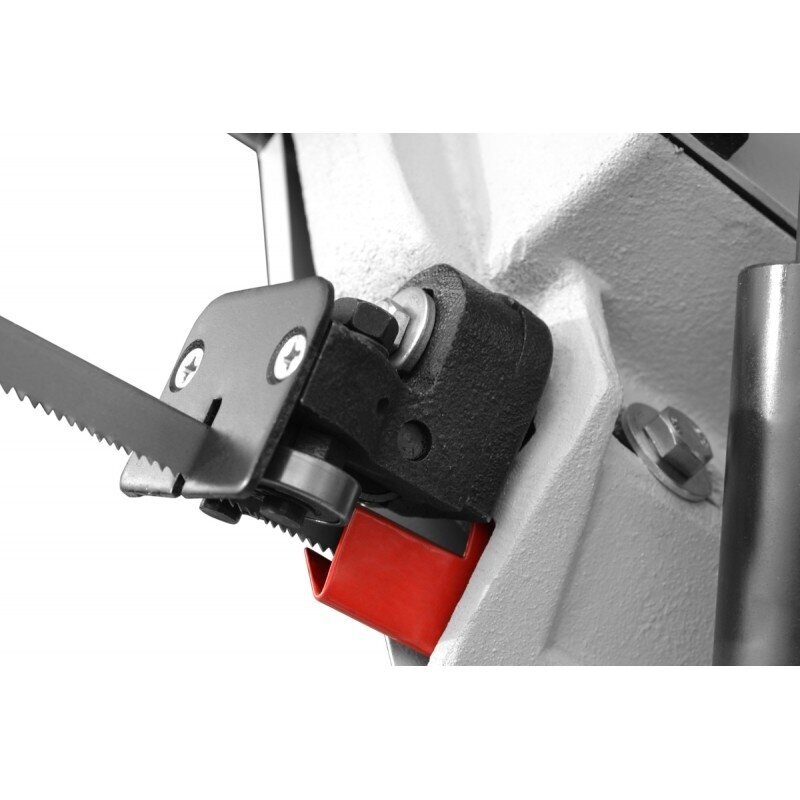

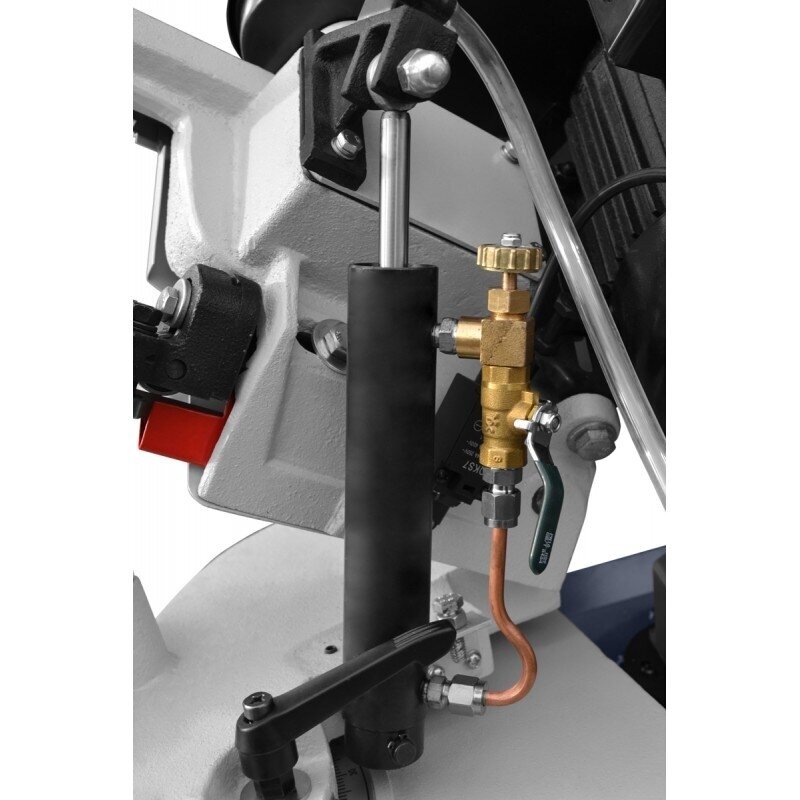

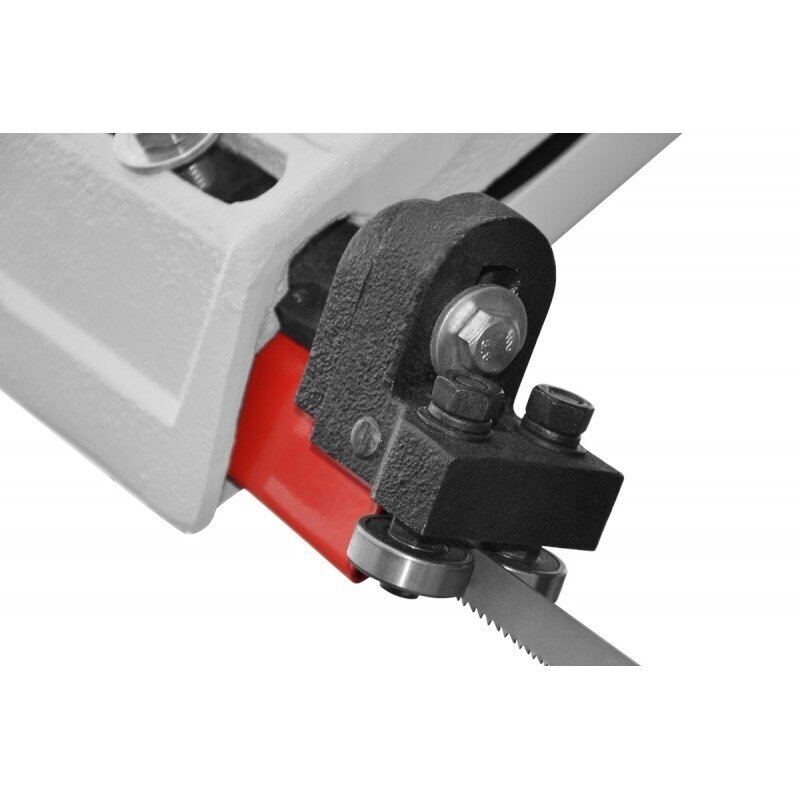

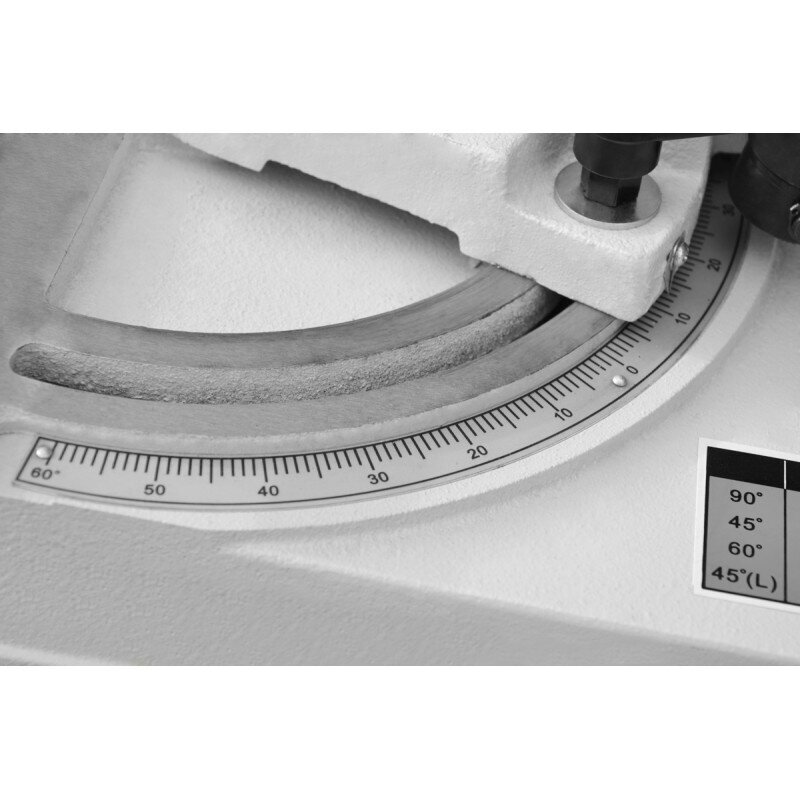

CORMAK BS 128HDRC band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its weight (103 kg) makes it stable and vibration-free during cutting materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45o - + 60o.
Technical data
Cutting band size
|
1640×13×0,65 mm |
Band tension
|
mechanical (manual)
|
|
Band speed |
23 / 34 / 54 m/min |
Arm lowering control
|
stepless – hydraulic cylinder |
Power supply
|
1-phase, 230 V
|
|
Total power |
0,55kW |
Dimensions with base
|
942x442x548 mm
|
|
Weight |
103 kg
|
|
Angle |
 |
 |
 |
|
0º |
ø125 |
150x100 |
120x120 |
|
-45º |
ø95 |
95x76 |
85x85 |
|
+60º |
ø50 |
56x55 |
45x45 |
-
-
