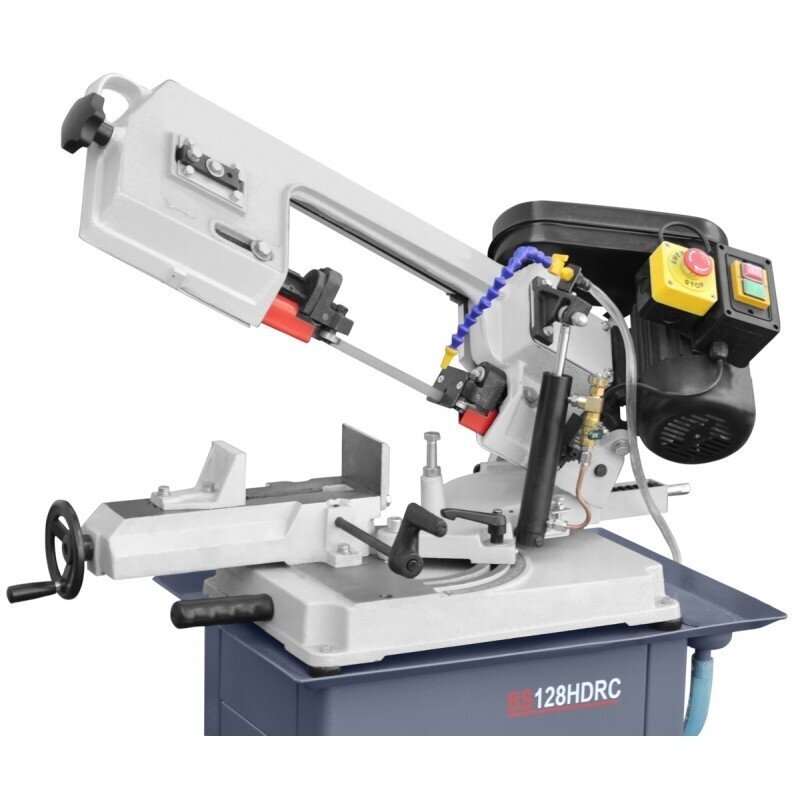

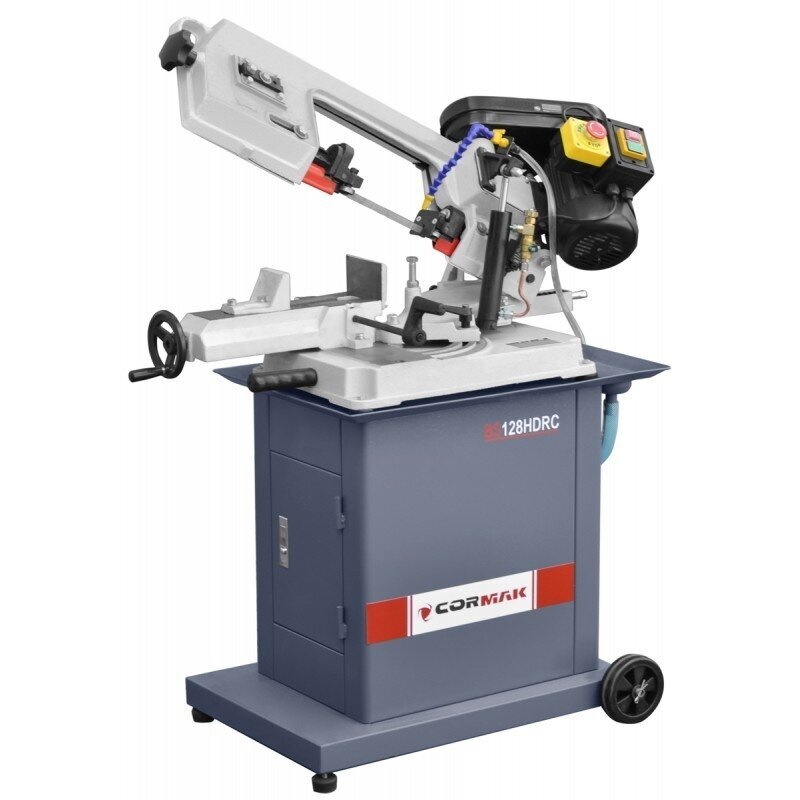

Cormak BS 128 HDRC 400V / MBS150 400V Band Saw
Cormak BS 128 HDRC 400V / MBS150 400V Band Saw
ManufacturerHolzmintBrandHolzmint-
Most important advantages:

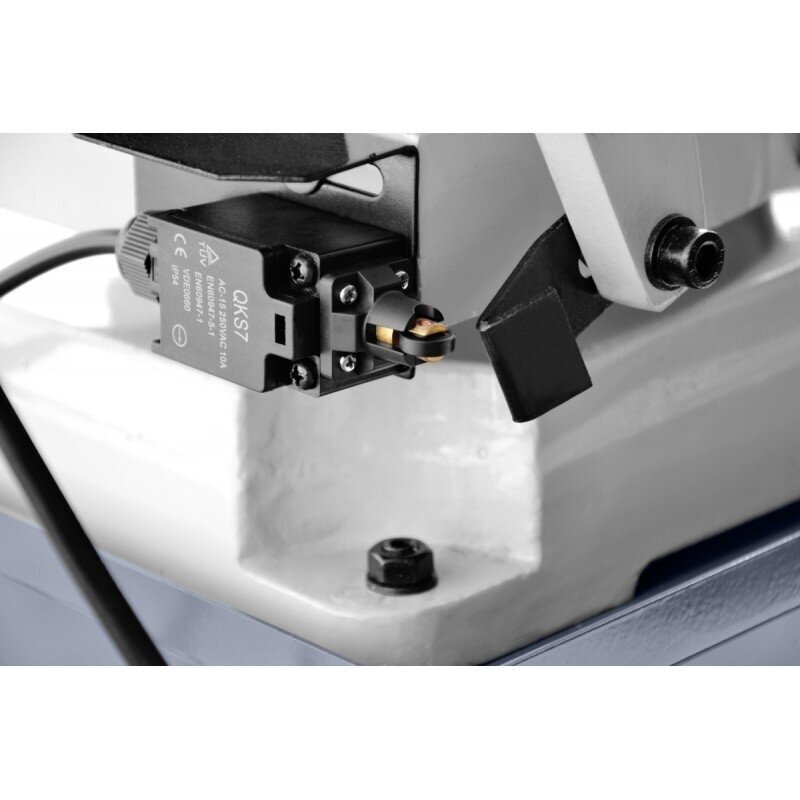

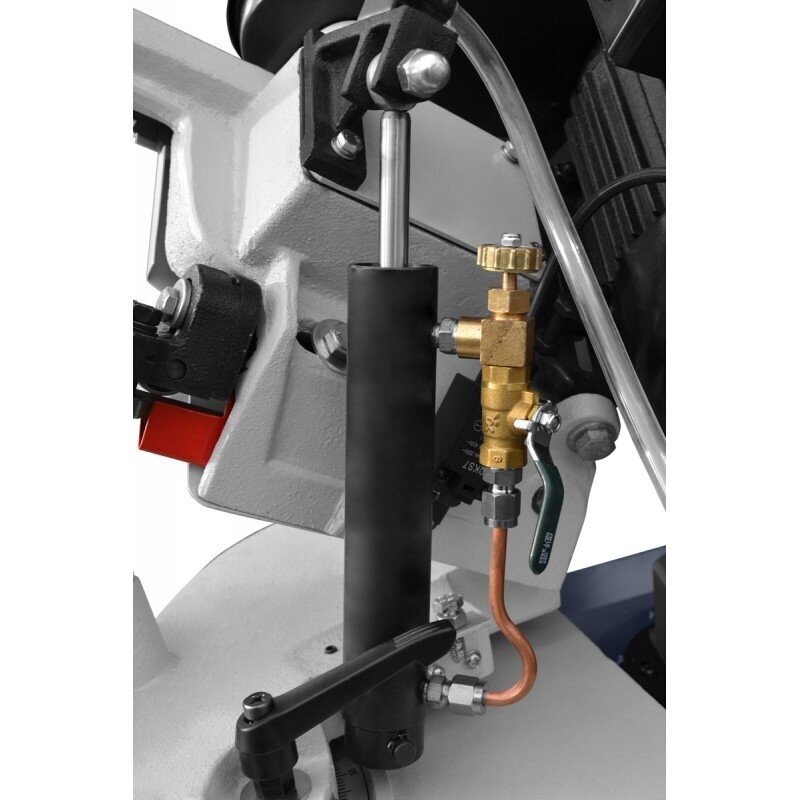

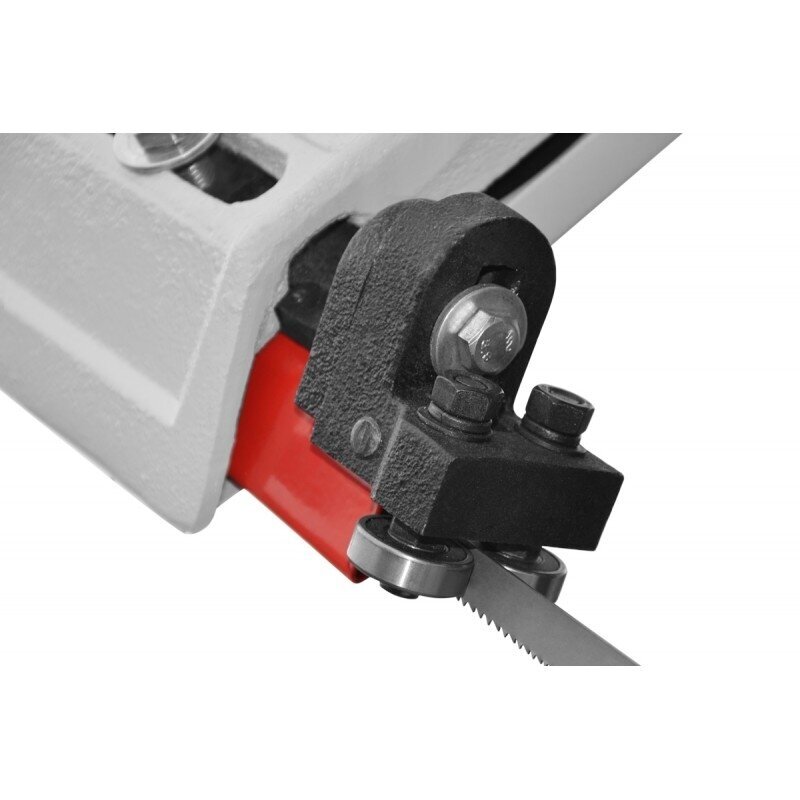

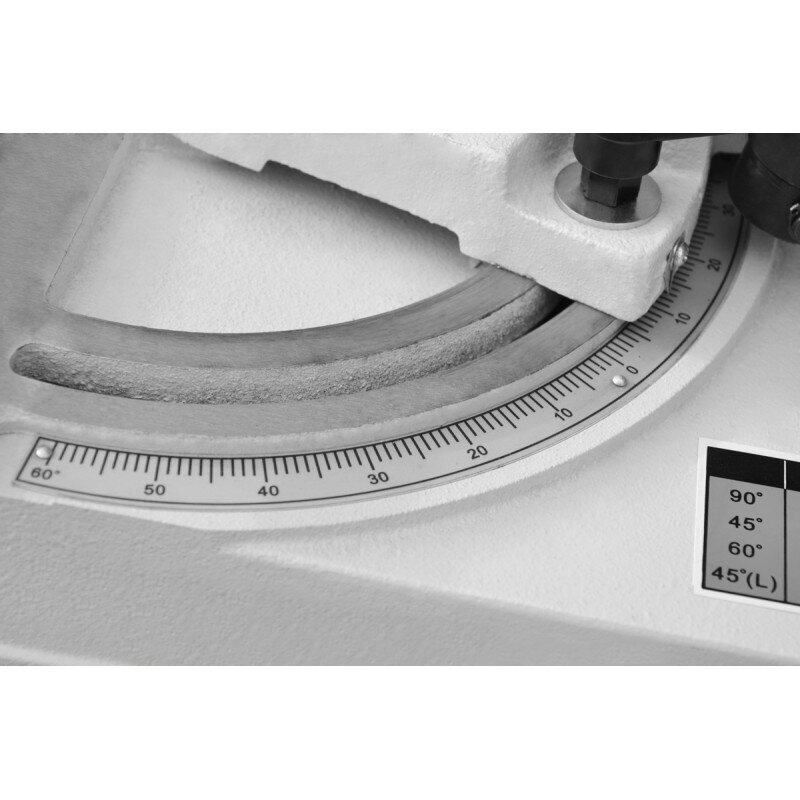

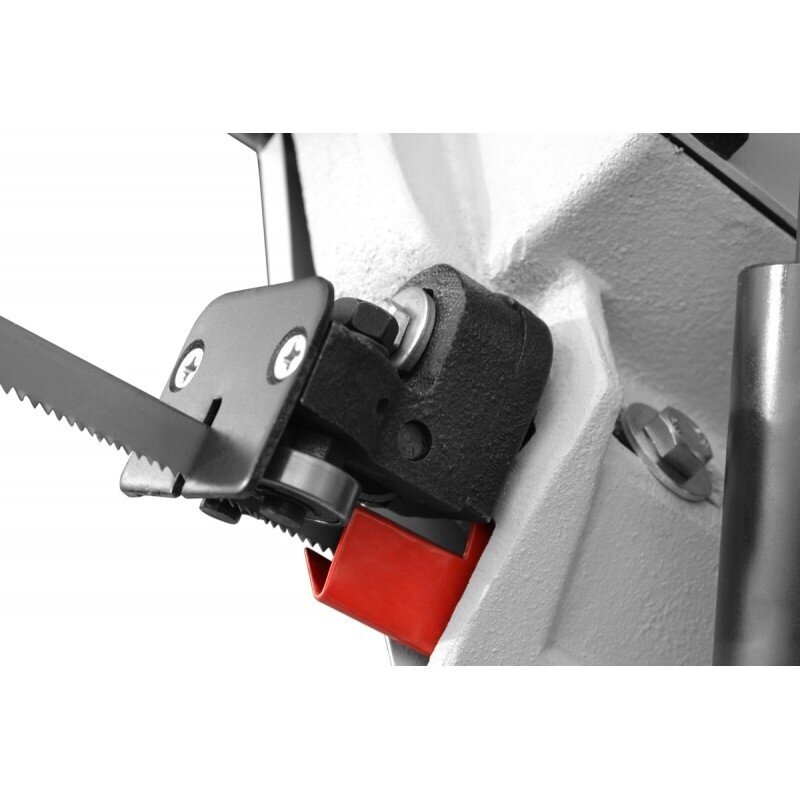

BS 128HDRC / MBS150 400V band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its weight (103 kg) makes it stable and vibration-free during cutting materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45o - + 60o.
Technical data
Cutting band size
1640×13×0,65 mm Band tension
mechanical (manual)
Band speed 23 / 34 / 54 m/min Arm lowering control
stepless – hydraulic cylinder Power supply
3-phase, 400 V
Total power 0,55kW Dimensions with base
942x442x548 mm
Weight 103 kg
Angle 0º ø125 150x100 120x120 -45º ø95 95x76 85x85 +60º ø50 56x55 45x45
