Most important advantages:

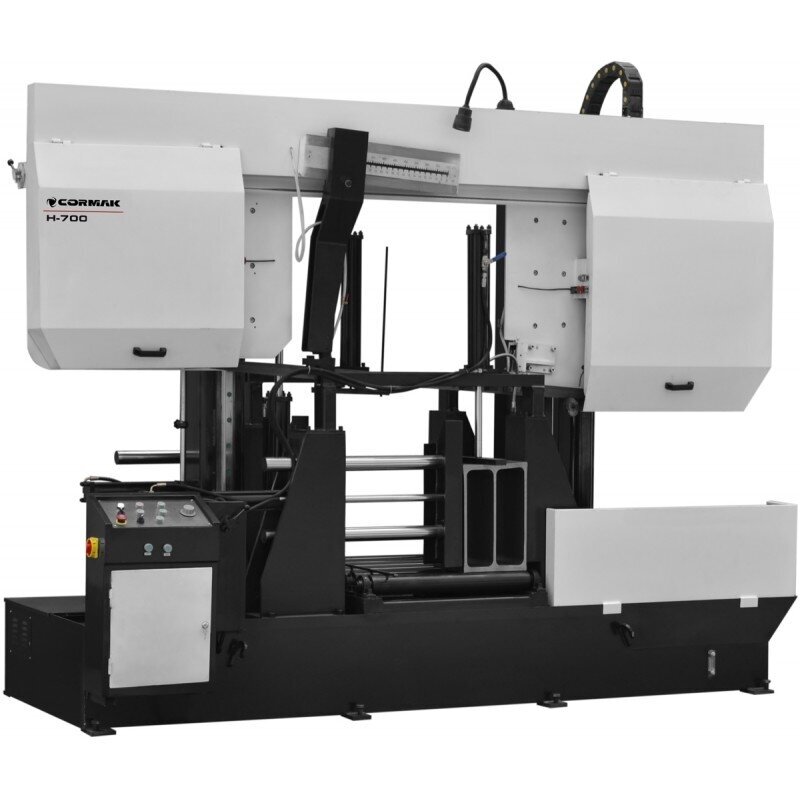

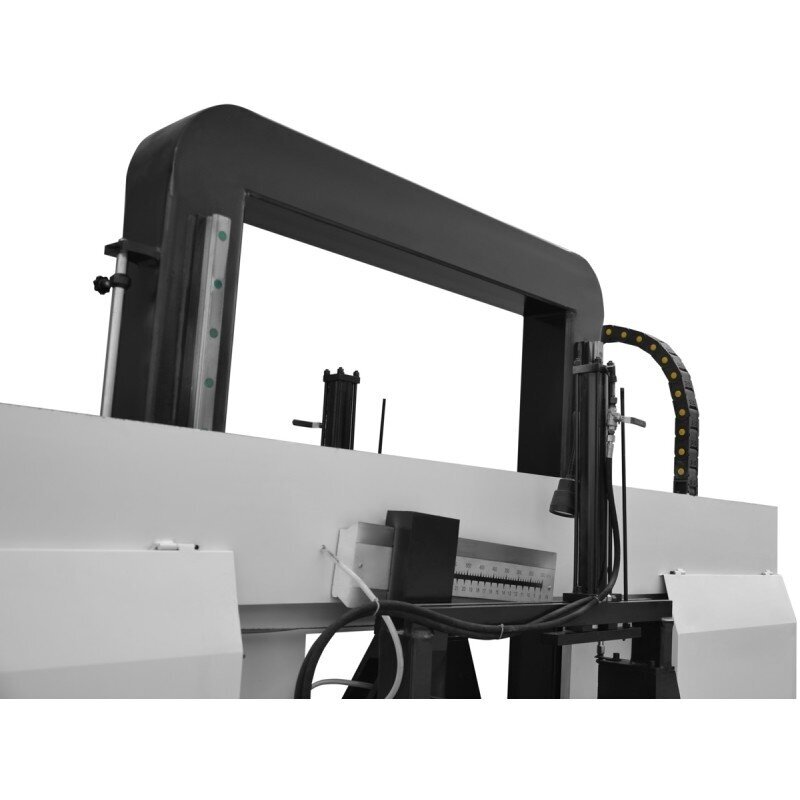

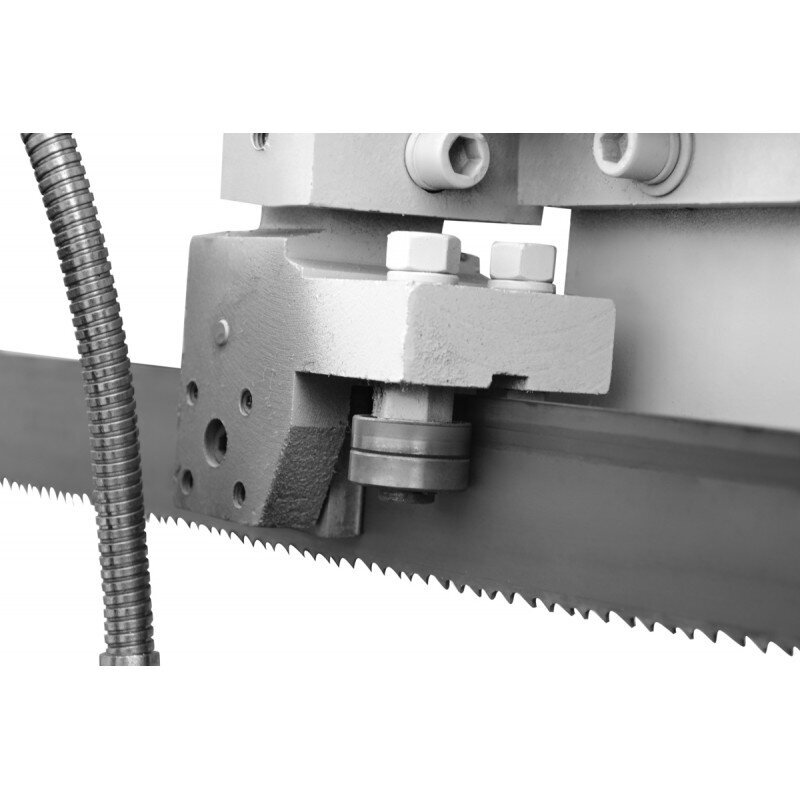

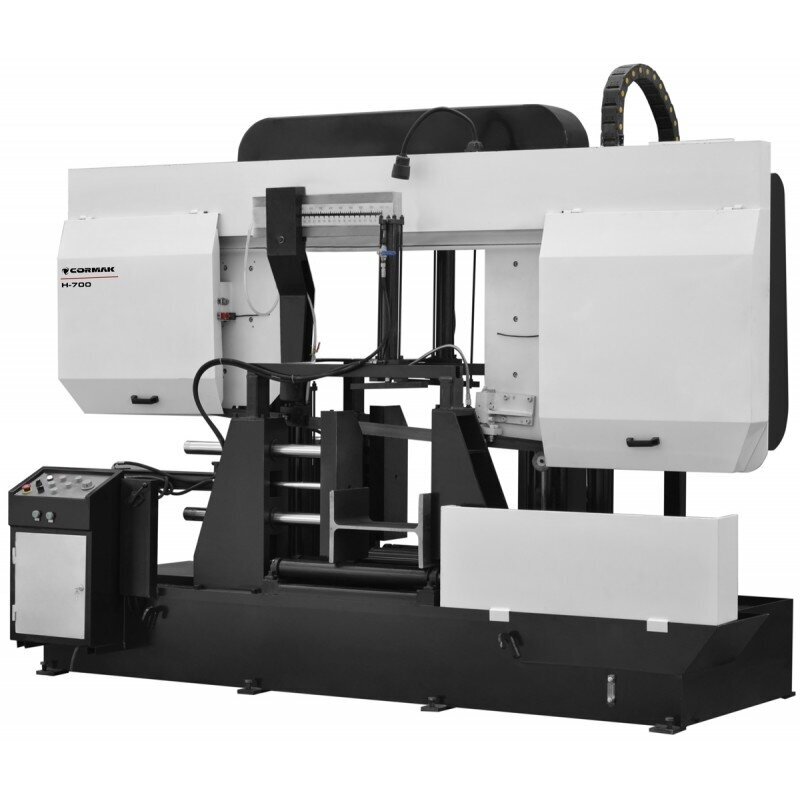

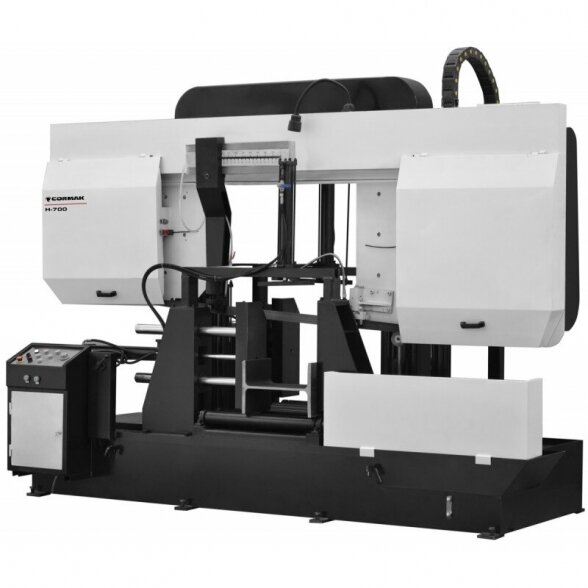

In the semi-automatic band saw CORMAK H-700, when the switch is turned on, the entire cutting cycle, i.e. fastening of the cut material in the hydraulic press, turning on the cutting belt, lowering the cutting lever (speed is continuously regulated), stopping. the machine after cutting, when the hand is raised (the height of the lever is adjustable) and the hydraulic nut shuts off automatically. Manual operation of the machine has been simplified to feed the cut material all the way. The massive arm made of solid cast iron, together with the refined, massive and stable construction, gives the CORMAK H-700 cutter exceptional strength, which means that it works without problems and cuts very precisely. Belt tension ensures optimal belt working conditions. If the saw blade breaks, the machine stops automatically. Belt alignment accuracy is ensured by guides consisting of bearings and inserts made of sintered carbide. Innovation and production of CORMAK semi-automatic and automatic serial cutters in accordance with ISO:90001 and ISO:140001 certificates, which meet norms and standards, guarantee product safety, quality and reliability. The use of motors licensed by a well-known and respected manufacturer in the global market, one of the world leaders, ABB, guarantees a long and trouble-free operation.
Technical data
Type
|
semi-automatic
|
Table height
|
550 mm |
Cutting band size
|
7400×54×1.6 mm |
|
Arm raising and lowering |
hydraulic, with stepless lowering adjustment |
|
Band speed |
30 / 45 / 65 / 75 m/min |
Vice clamp and cutting band tension
|
manual
|
Power supply
|
3-phase, 400 V
|
|
Total power |
7.5 kW |
Hydraulic motor power
|
1.5 kW |
Dimensions with base
|
3450x1550x2550 mm
|
|
Weight |
2800 kg
|
|
Angle |
 |
 |
|
0º |
ø700 |
700x700 |
