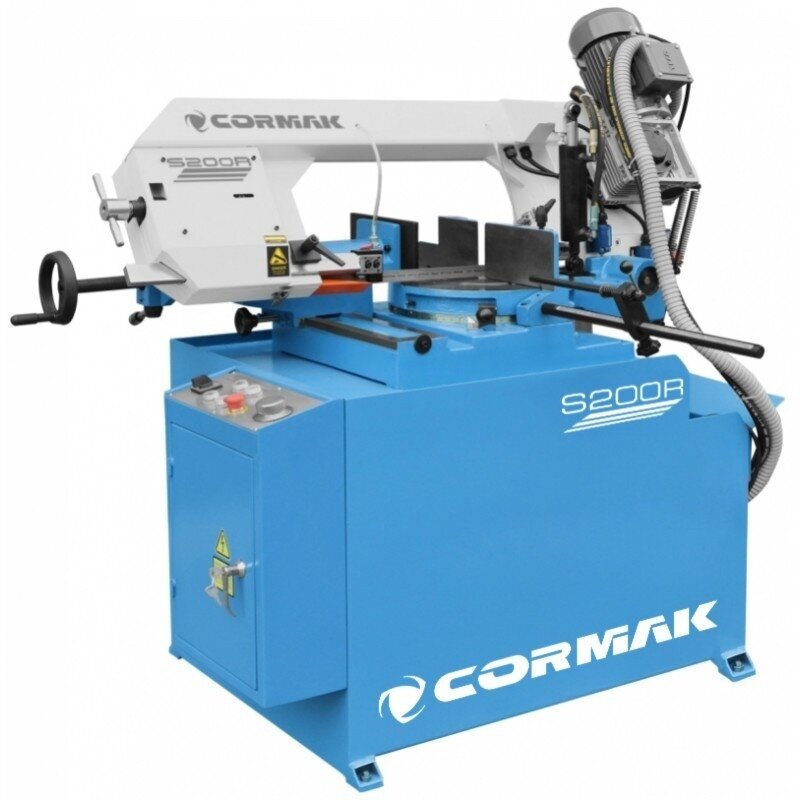

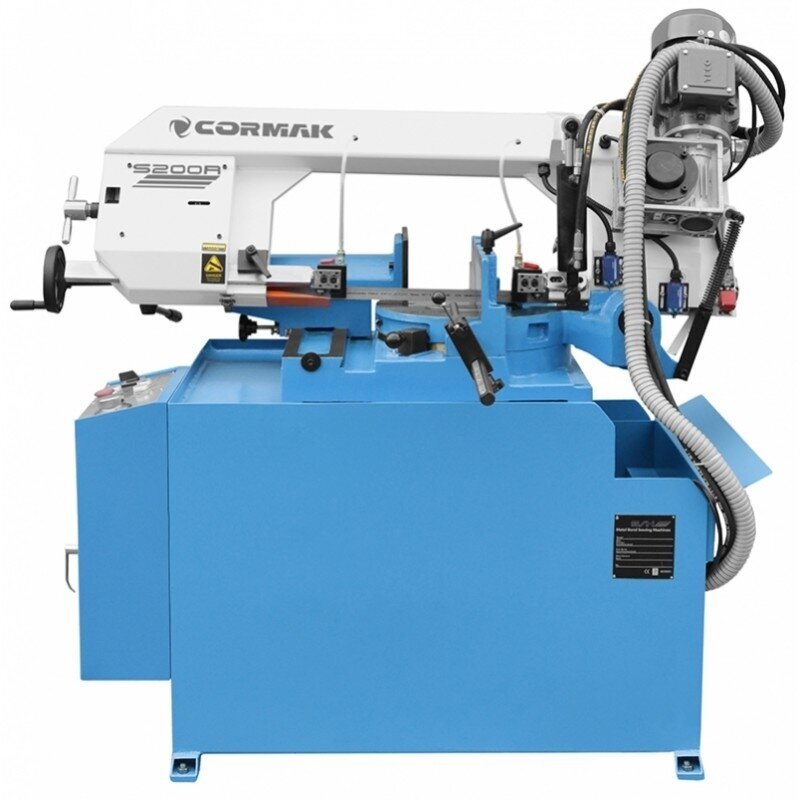

Cormak S 200 RH Semi-Automatic Band Saw

  • Cormak S 200 RH Semi-Automatic Band Saw

    5771.70
    (4770.00  VAT excl.)
    Want another price? Suggest yours!
    In stock.
    Manufacturer
    Cormak
    Brand
    Cormak
  • Most important advantages:

    CORMAK S-200RH band saw is by default equipped with automatic arm lowering and raising as well as with a precise arm height regulator. Due to an automatic hydraulic damper, the manual handling of the machine has been simplified to feed and clamping the cut material in a vice. The arm made of uniform iron casting, together with a refined, solid and stable construction, ensure S-200RH's exceptional rigidity, resulting in failure-free handling and high cutting precision.
    The innovativeness and production of semi-automatic and automatic series "CORMAK-PREMIUM LINE" band saws, compliant with the norms and standards consistent with ISO:910001 and ISO:140001 certificates, warrant safety, quality and reliability of the product. M3V motors from ABB, a renowned worldwide manufacturer, warrant long-term reliability. As an official and the only representative on the Polish market, we assure that the product is original and provide professional, customised warranty and post-warranty services.

    Technical data

    Type
    semi-automatic
    Cutting band size
    2910×27×0,9  mm
    Arm raising and lowering
    hydraulic with smooth arm lowering control
    Band speed 36 / 70 m/min
    Angled cutting left to 45°, right to 60°

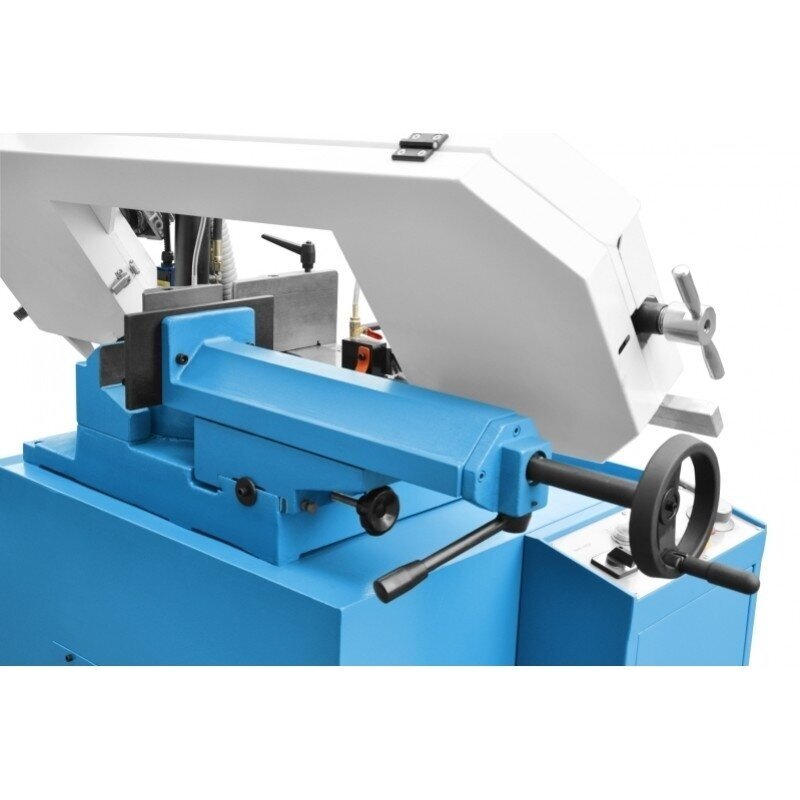

    Vice
    manual
    Minimum cutting diameter
    Ø 5 mm
    Minimum material length in vice 30 mm
    Vice base height 780 mm
    Power supply
    3-phase, 400 V
    Total power 2,1 kW
    Dimensions with base
    1600x800x1400 mm
    Weight 530 kg




















    Angle
    ø250 320x240 240x240
    45º L ø200 220x120 190x190
    45º R ø220 235x120 210x210
    60º R ø110 155x110 100x100
