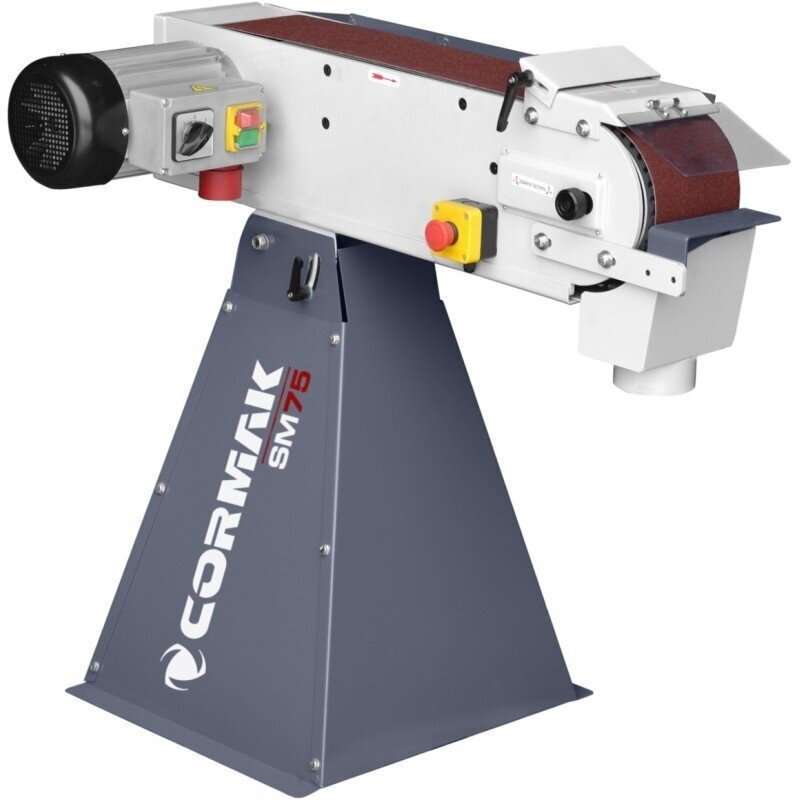

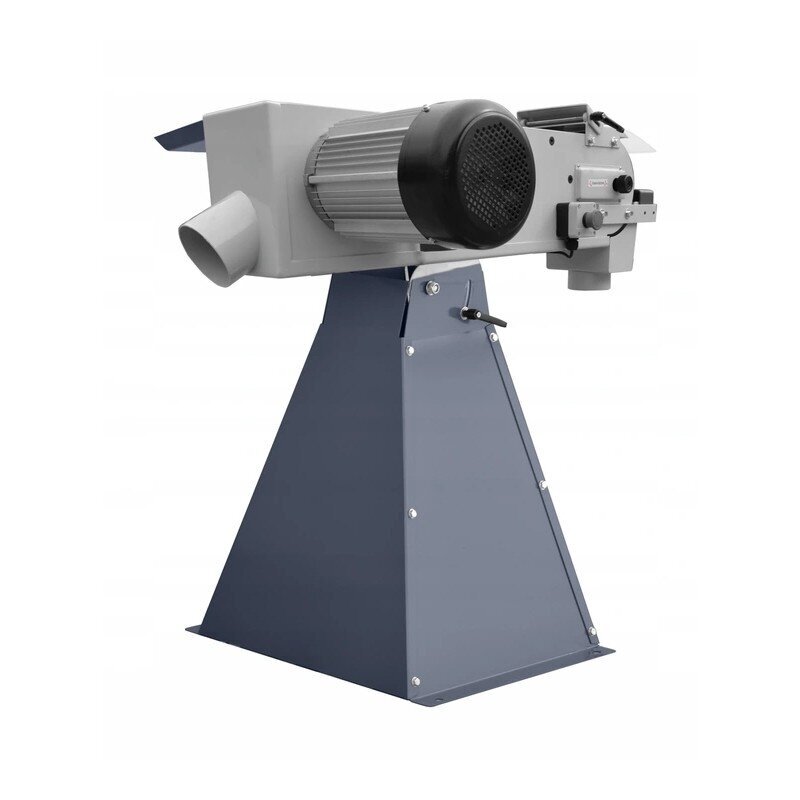

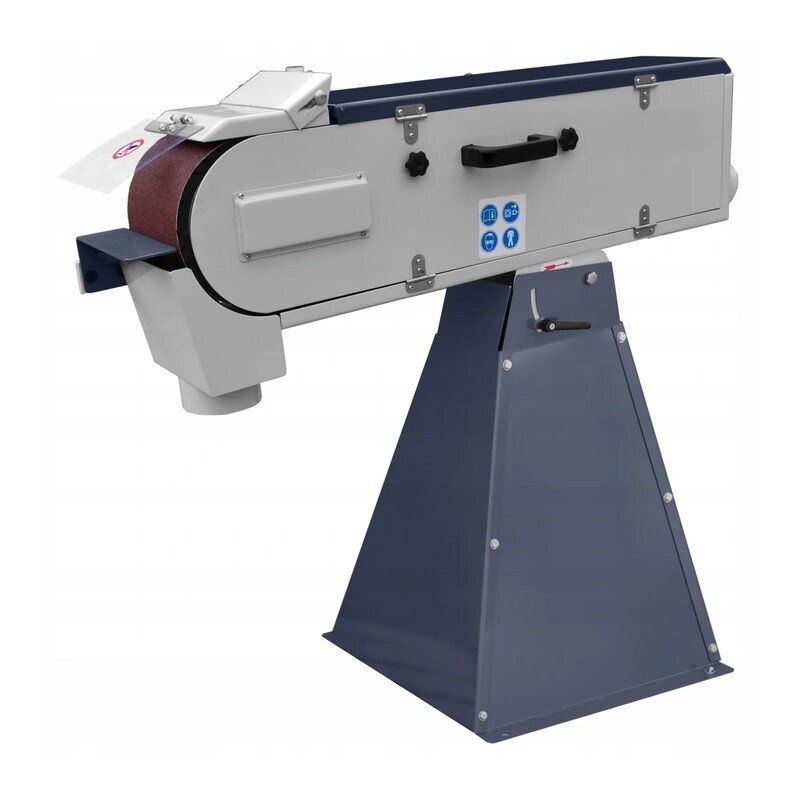

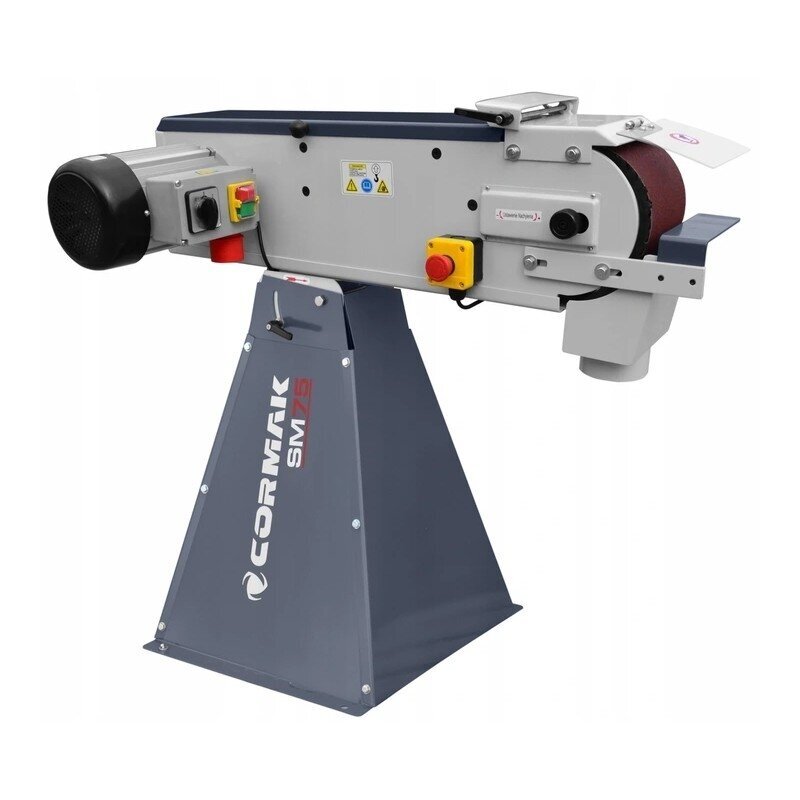

Cormak SM 75 Belt Grinding Machine
-
Cormak SM 75 Belt Grinding Machine
-
Most important advantages:
Belt metal grinding machine SM75 is intended for rough grinding, metal edge processing, welding seams grinding, etc.
Various materials can be ground with the help of the machine. The resulting sparks and smoke can be easily removed by additionally connecting the extractor of the MDC750 series to the grinding machine. Simple and convenient operation, at the same time quiet and robust during operation.

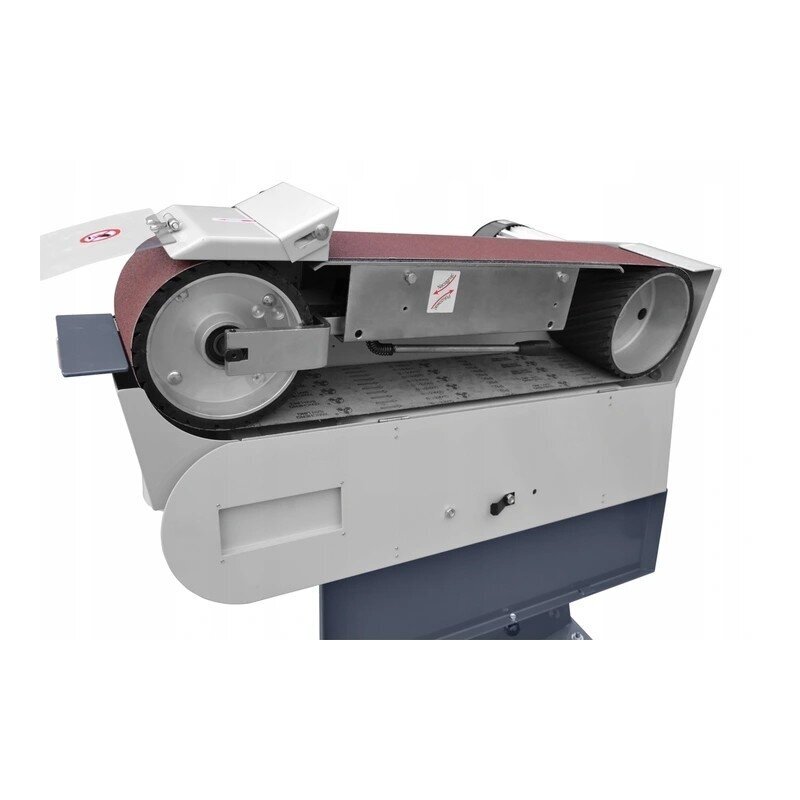

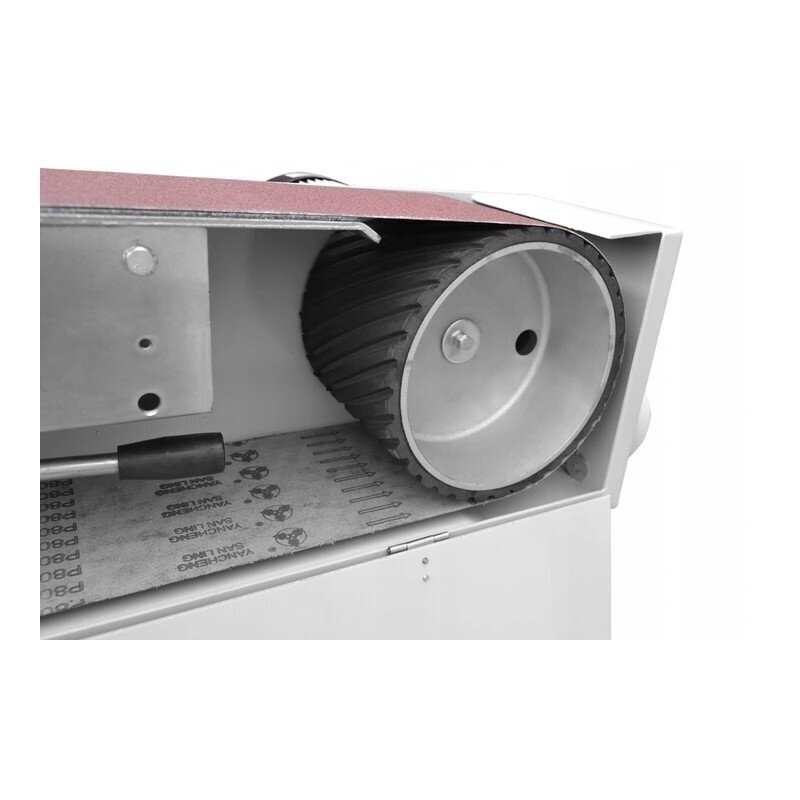

Well-balanced rollers ensure vibration-free operation.
Significantly saves time when grinding.

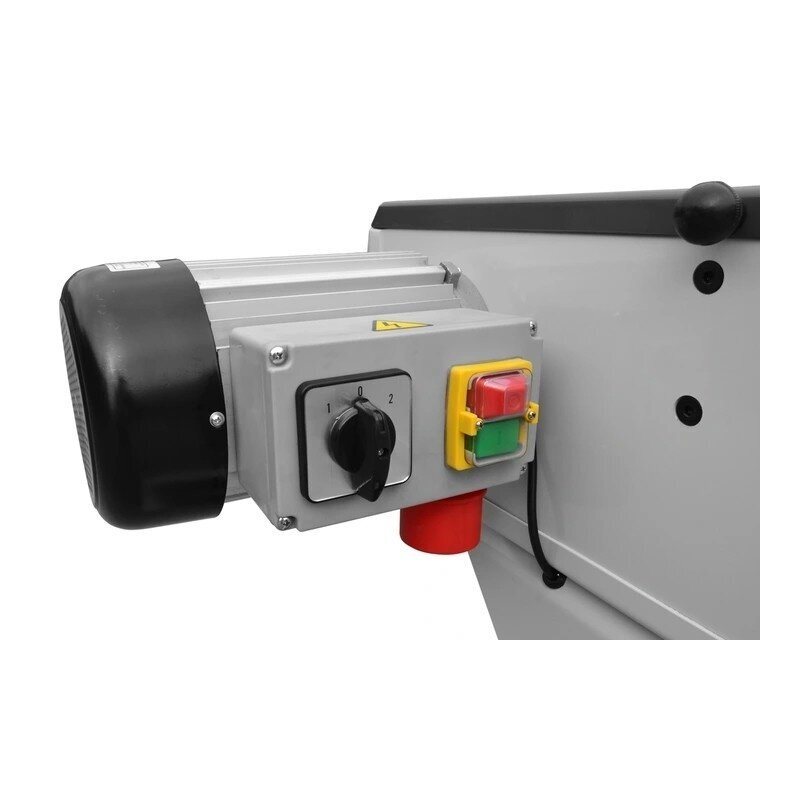

Enclosed on/off switch conforming to IP54 standard with low voltage cut-out switch
The machine must be operated in indoor conditions.

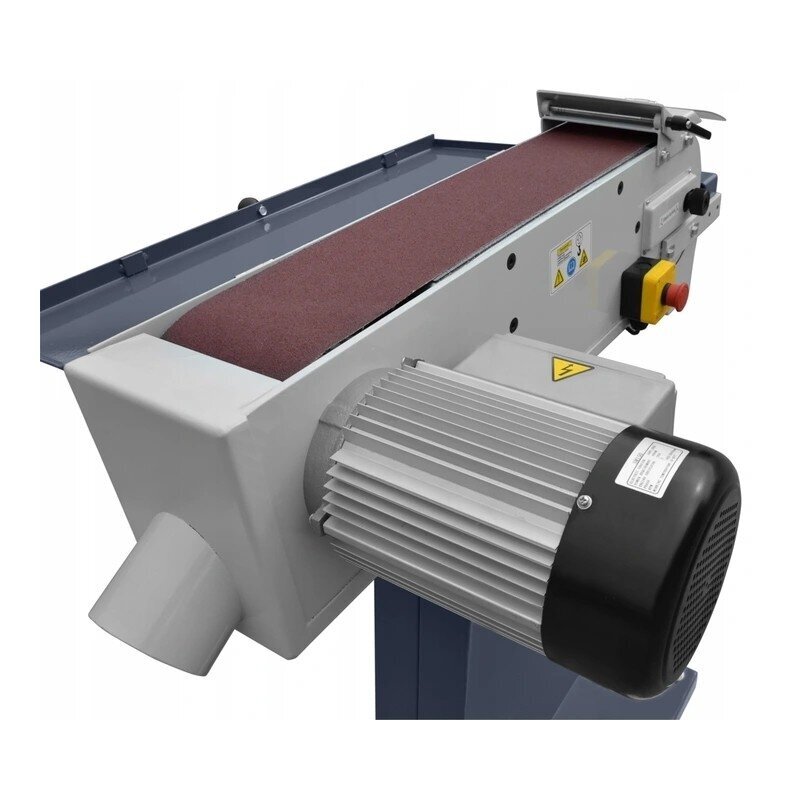

Powerful 3-phase voltage electric motor.

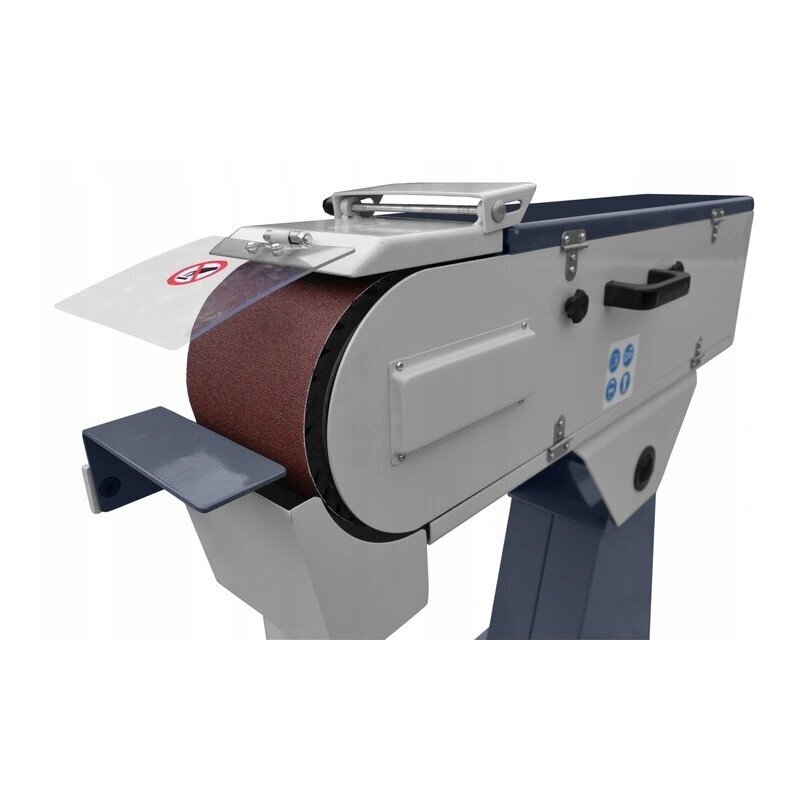

Quick and easy sanding belt change.

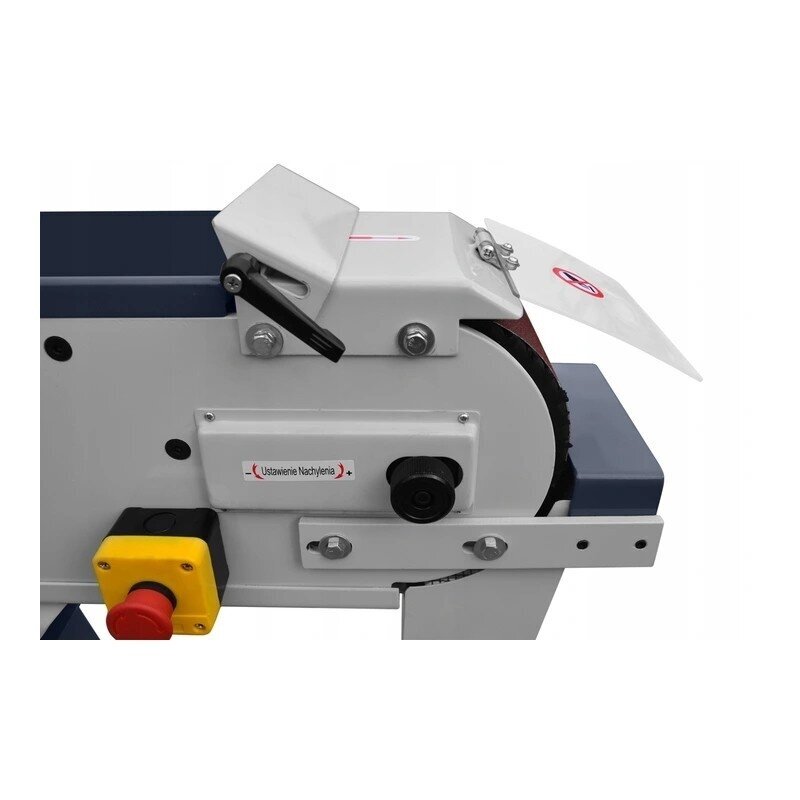

Large grinding surface, adjustable limiters - universal purpose.
Technical data
|
Wheel contact surface (H×W) |
250×150 mm |
|
Belt speed |
14,5/29m/s |
|
Grinding belt dimensions (L×W) |
2000×75 mm |
Power supply
|
3-phase, 400 V
|
|
Total power |
3 kW |
Dimensions
|
1070x560x980 mm |
|
Weight |
72 kg
|
-
-
