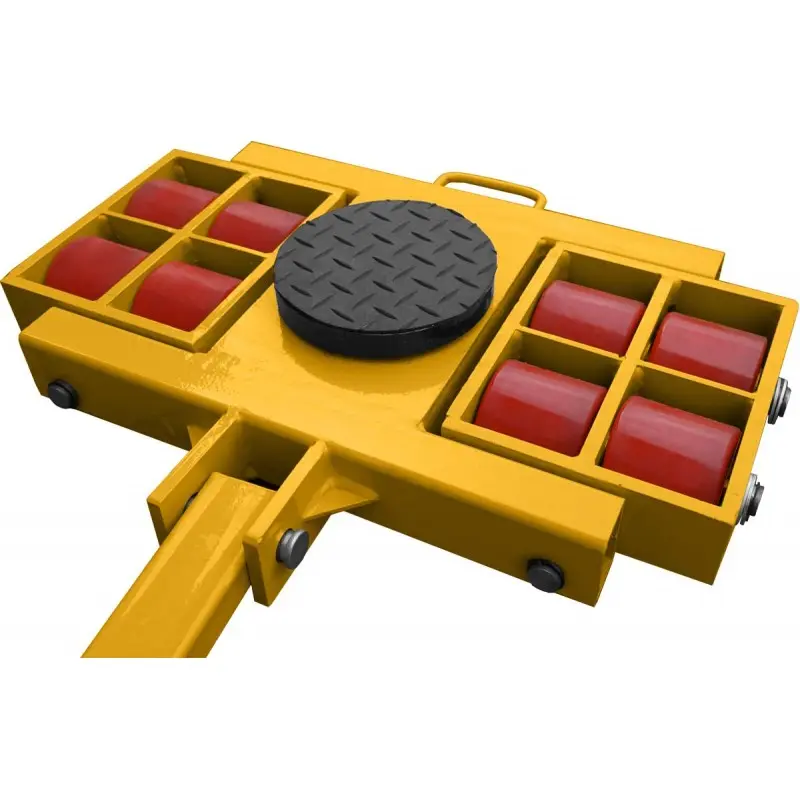

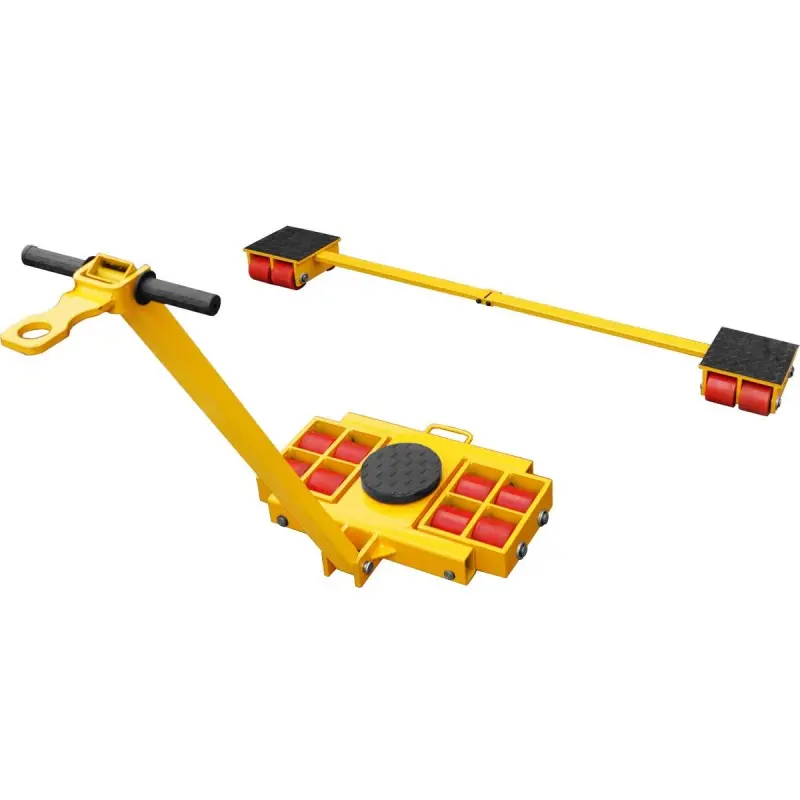

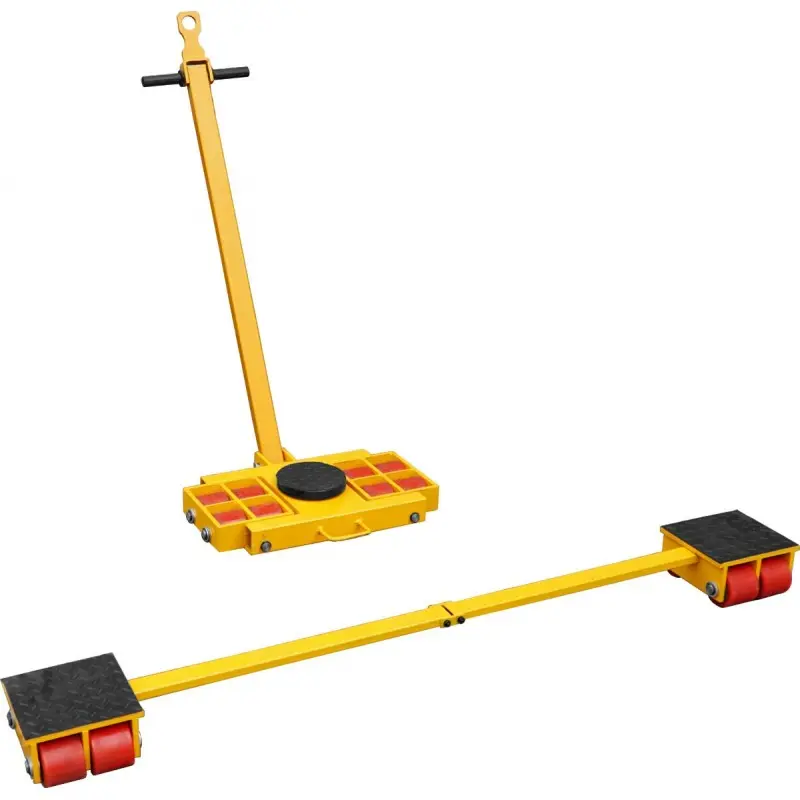

Cormak WL6+WF6 Heavy load moving system skate set 12 TON
-
Cormak WL6+WF6 Heavy load moving system skate set 12 TON
-
Description
Transport rollers allow safety and easy transport of heavy items. Thanks to the use the polyurethane tread rollers, the transported machine and floor are not damaged.

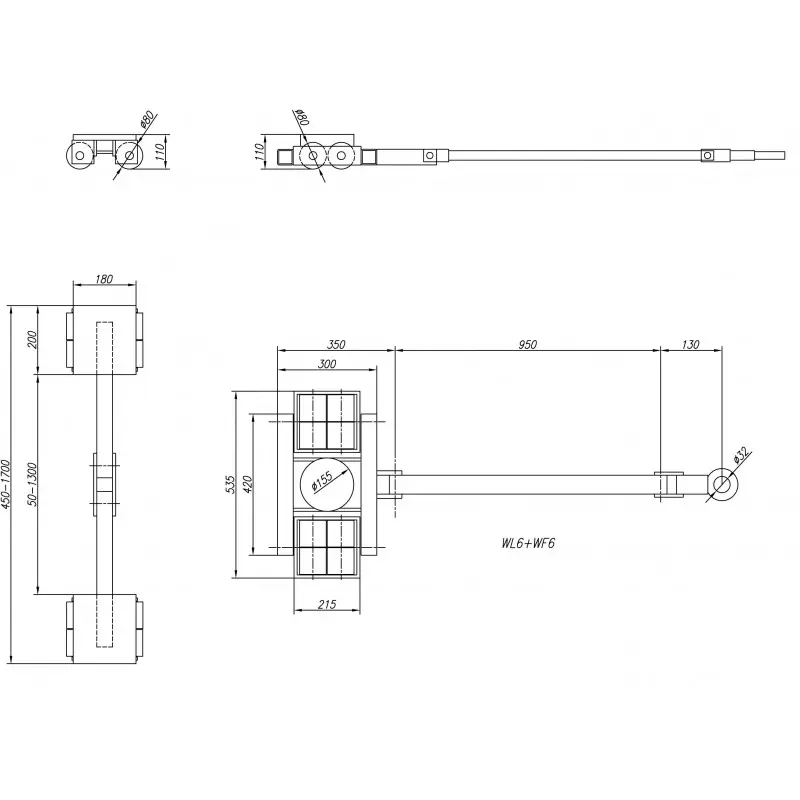

Technical data
Technical parameters WL6
|
|
Size of rollers
|
85x85 mm
|
Number of rollers
|
8
|
Loading weight
|
6000 kg
|
Loading height
|
110 mm
|
Bearing surface for the element
|
Ø170 mm
|
Support points
|
1
|
Lenght of shaft
|
1080 mm
|
Turning angle of shaft
|
± 90 o
|
Dimensions (L x W)
|
610x520 mm
|
Weight
|
41 kg
|

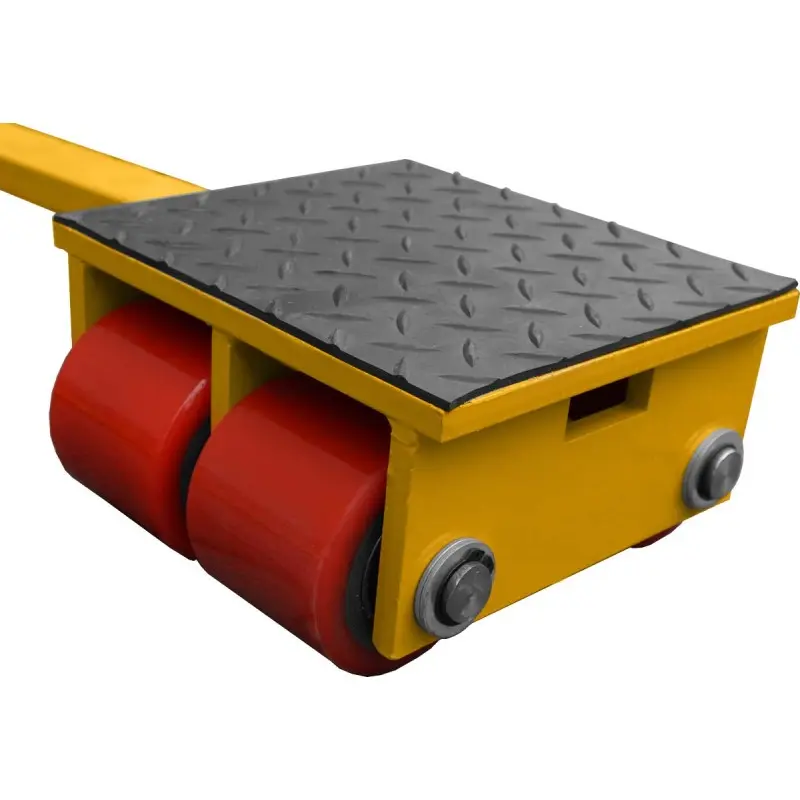

Technical parameters WF6
|
|
Size of rollers
|
85x85 mm
|
Number of rollers
|
8
|
Loading weight
|
6000 kg
|
Loading height
|
110 mm
|
Supporting surface for the elements
|
200x200 mm
|
Support points
|
2
|
Connector lenght
|
1000 mm
|
Spacing width between rollers
|
640 - 1030 mm
|
Weight
|
30 kg
|
